Weaving WIRE NETTING
Product Line:
●Galvanized iron netting
●Plastic netting
●Enamelled iron netting
●Fiber glass netting
●Aluminium netting
Specifications Available | ||
(In 25M roll, Width of 0.5M - 1.8M) | ||
Mesh | Width (M) | Length (M) |
9 x 9 | 0.6, 0.8, 0.9, 1, 1.2 | 15, 25, 30 |
10 x 10 | 0.6, 0.8, 0.9, 1, 1.2 | 15, 25, 30 |
11 x 11 | 0.6, 0.8, 0.9, 1, 1.2 | 15, 25, 30 |
14 x 14 | 0.6, 0.8, 0.9, 1, 1.2 | 15, 25, 30 |
14 x 16 | 0.6, 0.8, 0.9, 1, 1.2 | 15, 25, 30 |
16 x 16 | 0.6, 0.8, 0.9, 1, 1.2 | 15, 25, 30 |
16 x 18 | 0.6, 0.8, 0.9, 1, 1.2 | 15, 25, 30 |
18 x 18 | 0.6, 0.8, 0.9, 1, 1.2 | 15, 25, 30 |
SQUARE IRON WIRE MESH
Assortment available:
●Standard square iron wire mesh
●Hot-dip galvanized after (or before) woven

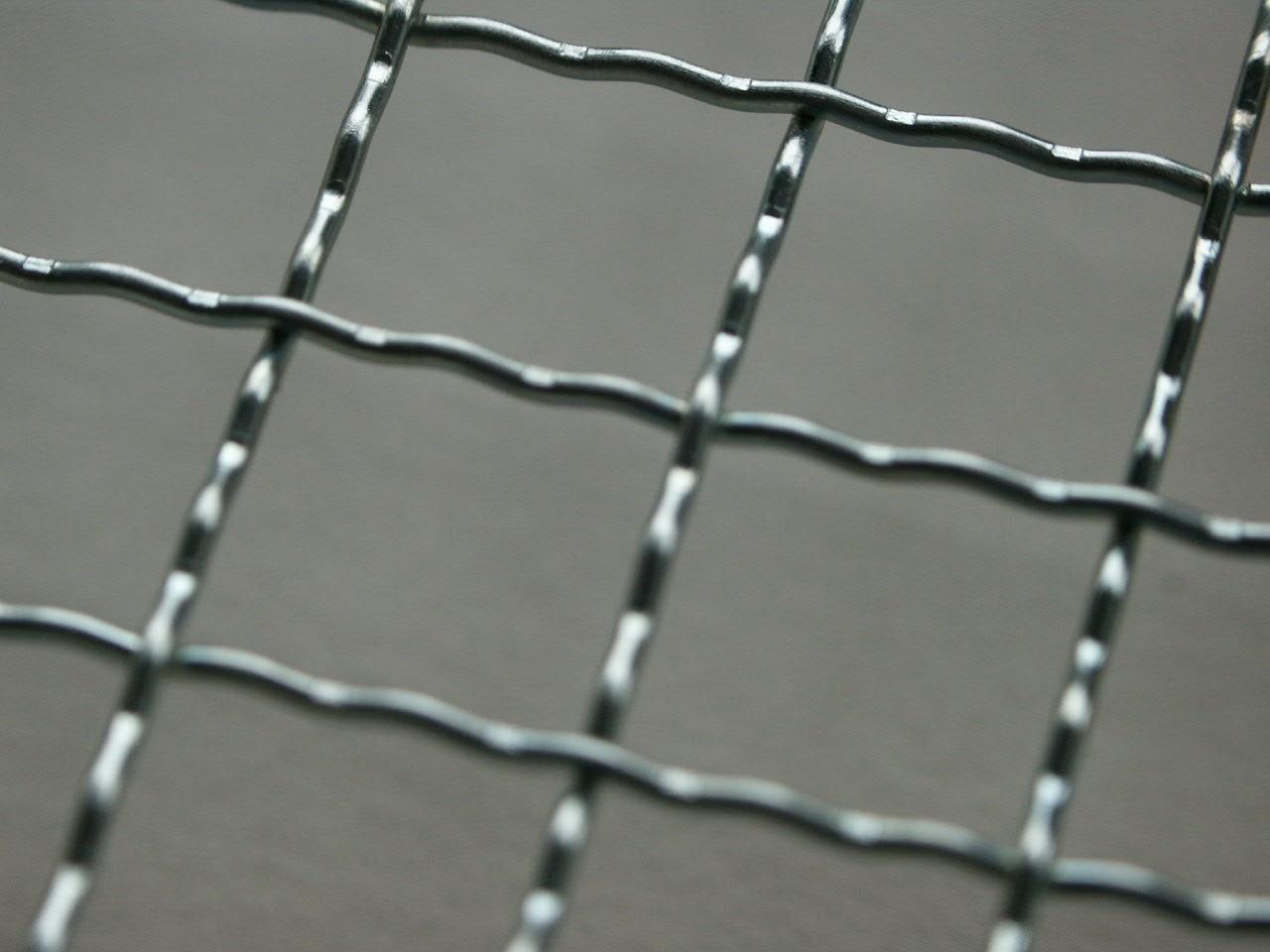

●crimped square iron wire mesh
●electric galvanized after (or before) woven
Specifications Available | ||
(In 25M roll, Width of 0.5M - 1.8M) | ||
Mesh | Width (M) | Length (M) |
9 x 9 Mesh | 0.6,0.8,0.9,1.00,1.20 | 15, 25, 30 |
10 x 10 Mesh | 0.6,0.8,0.9,1.00,1.20 | 15, 25, 30 |
11 x 11 Mesh | 0.6,0.8,0.9,1.00,1.20 | 15, 25, 30 |
14 x 14 Mesh | 0.6,0.8,0.9,1.00,1.20 | 15, 25, 30 |
14 x 16 Mesh | 0.6,0.8,0.9,1.00,1.20 | 15, 25, 30 |
16 x 16 Mesh | 0.6,0.8,0.9,1.00,1.20 | 15, 25, 30 |
16 x 18 Mesh | 0.6,0.8,0.9,1.00,1.20 | 15, 25, 30 |
18 x 18 Mesh | 0.6,0.8,0.9,1.00,1.20 | 15, 25, 30 |

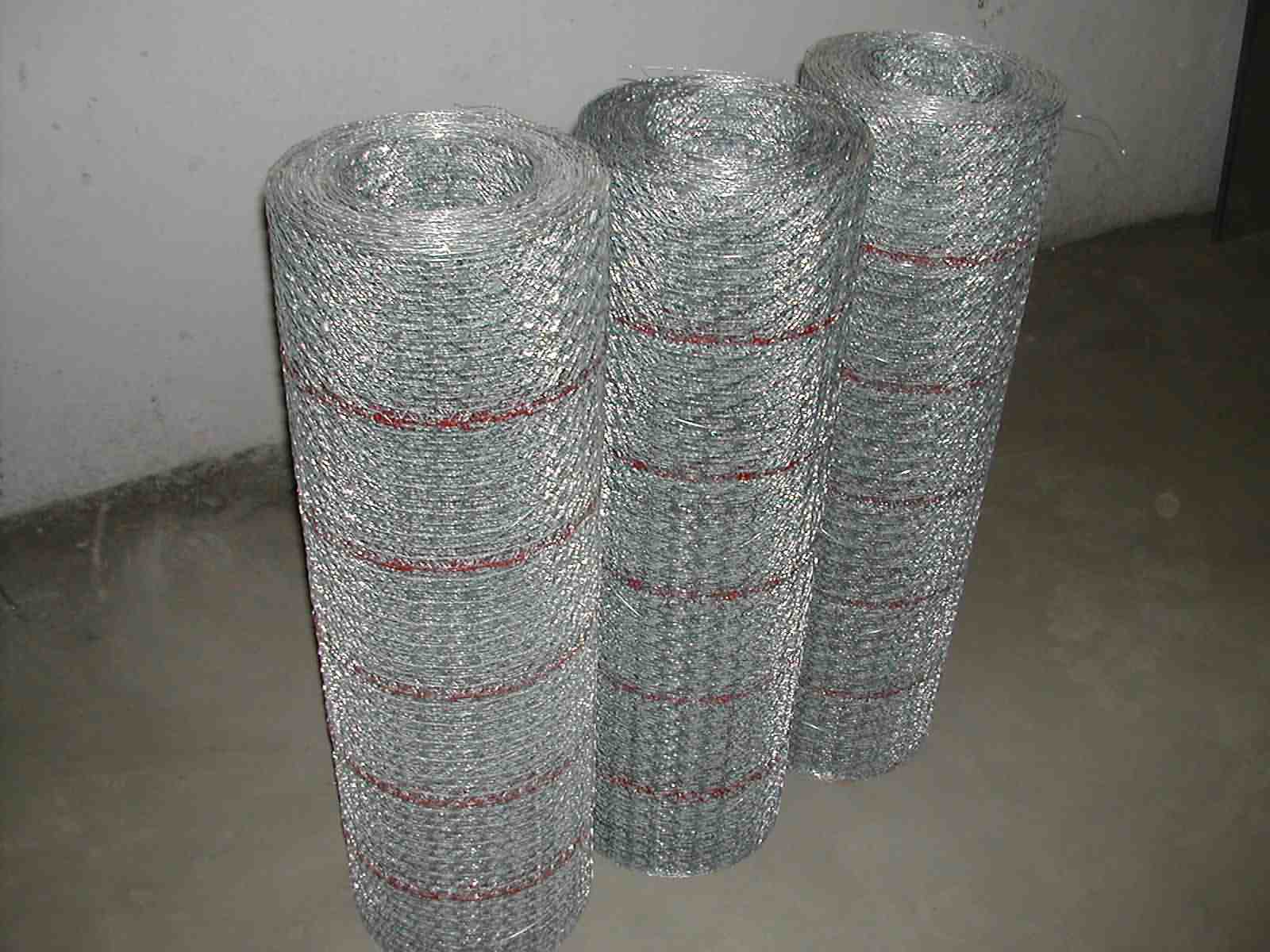

STUCCO NETTING
Assortment available:
●Standard hexagonal netting with curve
●Hot-dip galvanized after (or before) woven
●electric galvanized after (or before) woven
Specification:
(0.8mm) 21G x 1" x 3' x 150'
BRASS WIRE NETTING
Width---3', 4', 1M; Length---25M, 30M | |||||
Mesh | Gauge mm | Mesh | Gauge mm | Mesh | Gauge mm |
2 | 1.6 | 20 | 0.25 | 110 | 0.09 |
4 | 0.9 | 30 | 0.21 | 120 | 0.09 |
6 | 0.7 | 40 | 0.19 | 130 | 0.07 |
8 | 0.5 | 50 | 0.15 | 140 | 0.07 |
10 | 0.5 | 60 | 0.15 | 150 | 0.06 |
12 | 0.5 | 70 | 0.13 | 160 | 0.06 |
14 | 0.4 | 80 | 0.12 | 180 | 0.053 |
16 | 0.3 | 90 | 0.11 | 200 | 0.053 |
18 | 0.3 | 100 | 0.10 | 220 | 0.05 |
STAINLESS STEEL WIRE NETTING
Width---3', 4', 1M; Length---25M, 30M | |||||
Mesh | Gauge mm | Mesh | Gauge mm | Mesh | Gauge mm |
2 | 2.0 | 14 | 0.70 | 120 | 0.08 |
3 | 1.6 | 16 | 0.70 | 150 | 0.06 |
4 | 1.0 | 20 | 0.21 | 180 | 0.05 |
5 | 1.2 | 30 | 0.25 | 200 | 0.05 |
6 | 1.2 | 40 | 0.20 | 250 | 0.04 |
7 | 1.2 | 50 | 0.15 | 300 | 0.04 |
8 | 0.6 | 60 | 0.16 | 350 | 0.03 |
10 | 1.0 | 80 | 0.12 | 400 | 0.03 |
12 | 0.9 | 100 | 0.10 |
EXPANDED SHEETS
Assortments available:
●Galvanized (Hex. mesh , Trapezoid mesh, Diamond mesh )
●Aluminum
●Galvanized (color furnish)
